Why gas and temperature stability matter
When embryos are cultured in the lab, they are housed in incubators where gas and temperature levels are closely monitored to mimic the environment of a woman’s fallopian tube. The moment embryos are exposed to unstable environment, they may suffer from undesirable shock or stress. Thus, the incubator plays as one of the most important piece in every IVF laboratory.
During observation, embryos are removed from the incubator. Such process requires a frequent opening of the incubator causing a change in gas concentration and rapid temperature drop. Any drastic changes in gas concentration and temperature may cause a detrimental effect on the normal development of the embryo. Regulating the C02 concentration is of paramount importance as this helps control the pH of the culture medium, with significant impact on gamete function and embryo development.1;Maintaining the right temperature is also important as it affects meiotic spindle stability and possibly embryo metabolism.2
Esco Medical benchtop incubators provide a robust solution with its smaller compartment, aiming to provide faster temperature and gas recovery. After opening a chamber, the parameters in the incubator return to its normal condition 5-6 times better than conventional box incubators.
Temperature and gas recovery of MIRI® Multiroom Incubator versus conventional "big box" incubator.
EXCELLENT TEMPERATURE RECOVERY
The MIRI® Time-Lapse, MIRI® and the Mini MIRI® benchtop incubators have exhibited excellent recovery rates for both gas and temperature. An independent study conducted shows that the MIRI® TL has an overall reliable and stable parameter performance.
Click here know more about this study.
Temperature gradients also occur more commonly in box-type incubators that use air- or water-jacketed warming. There are reports of slight temperature variations in different locations within the box-incubator.3

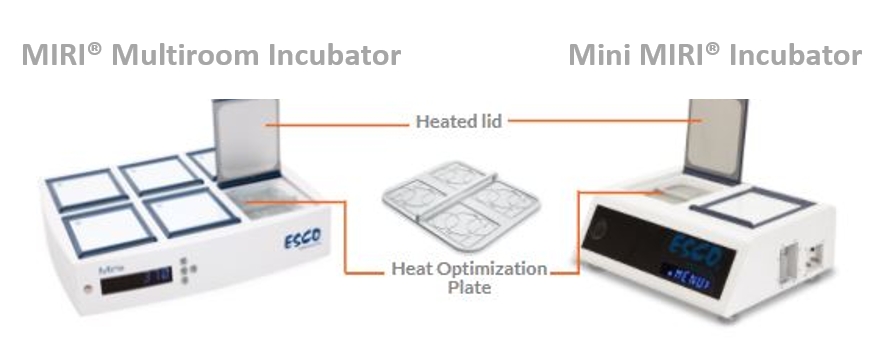

The MIRI® and Mini MIRI® have heated lids and bottoms for excellent uniformity and enhanced temperature regulation. Both also have removable heating optimization plates to facilitate direct transfer of heat from the bottom plate to the media.
HIGH QUALITY AIRSTREAM
It has also been well documented that the ambient air of IVF laboratories carried harmful Volatile Organic Compounds or VOCs, microbes, scents from perfumes, cleaning chemicals, etc., which affects embryonic development.4Hence, it is essential to have air filtration/ purification system to filter these air contaminants.
The Esco benchtop incubators are specially equipped with HEPA+VOC filter to help eliminate harmful VOCs and particulates.
EASY TO VALIDATE
Our benchtop incubators are equipped with PT1000 temperature sensors and gas sampling ports for external temperature and gas validation of each chamber. MIRI® and Mini MIRI® can be connected to an external device such as the Esco MIRI® GA for gas and temperature validation.
1Swain, J. (2012). Is there an optimal pH for culture media used in clinical IVF? Hum. Reprod. Update 18, 333-339.
2Sun, X., Eang, W., & Keefe, D. (2004). Overheating is detrimental to meiotic spindles within in vitro matured human oocytes. Zygote 12, 65-70.
3Swain, J. E. (2014). Decisions for the IVF laboratory: comparative analysis of embryo culture incubators. Reproductive Biomedicine Online 28, 535-547.
4Khoudja, R.Y., Xu, Y., & Li, T. (2012). Better IVF outcomes following improvements in laboratory air quality. J Assist Reprod Genet 30:69-76.
