MIRI® GA Gas and Temperature Validation Unit

MIRI GA® is a tabletop device that is designed to perform easy and continuous external gas and temperature validation of IVF incubators. This device can be used to validate different varieties of Esco Medical IVF incubators such as MIRI® Time-lapse Incubator, MIRI® Multiroom Incubator, Mini MIRI® Incubators, and other brands of IVF incubators.

Quality Control
Animal IVF

For Quality Control & Animal IVF

Features

Space Saver Design

Gas and Temperature Monitoring

Continuous Validation

Get a Quote Download Catalogue Watch Video
Product Details Parts of the MIRI® GA Gas and Temperature Validation Unit Specifications Special Features of the MIRI® GA Advantages of Using MIRI® GA Ordering Information Literature & Resources

Parts of the MIRI® GA Gas and Temperature Validation Unit

Parts of the MIRI® GA Gas and Temperature Validation Unit

Specifications

  1. Input Ports

    • 6 x PT1000 ports of temperature monitoring

    • 6 x gas sampling ports

  2. Output Ports

    • 1 x gas feedback port, 1 x USB port

  3. Shipping and Weight Dimensions

    • 440mm x 430mm x 240mm (17.3” x 16.9” x 9.4”)

    • 15 kgs (33.1lbs)

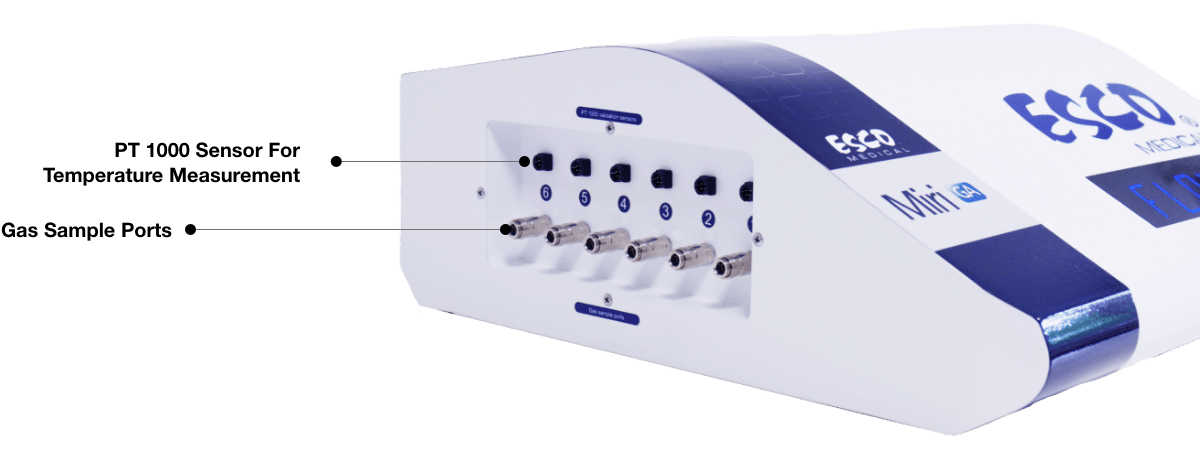

Parts of the MIRI® GA Gas and Temperature Validation Unit 2
Parts of the MIRI® GA Gas and Temperature Validation Unit 3

Special Features of the
MIRI® GA

  1. Gas Feedback Loop

    The major advantage of using MIRI® incubators is that this feature is specifically exclusive for MIRI® incubators. Having a setup of MIRI® GA + MIRI® incubators gives a closed system wherein gas leaked out or wastage can be prevented. However, if the incubator is not a MIRI® incubator, this feature can be used to direct gas to an exhaust if desired.

  2. Data Logger Software

    MIRI® GA comes with a data logging system that could help embryologists to monitor and record each parameter and optionally send email alarms. This software runs a Windows PC (Vista and above), it is not required to install in the MIRI® GA but this feature is very useful for the end-users.

Advantages of Using
MIRI® GA

  1. MIRI® GA can do both temperature measurement and gas concentration analysis concurrently. In using conventional hand-held validating devices, the embryologist may need two separate devices for measuring the temperature and gas concentration.

  2. MIRI® GA measures gas and temperature simultaneously 24 hours a day while in conventional devices, measurements are done in a regular interval.

  3. The gas suction rate is gentle, at the same time, adjustable. It is claimed to be at 3L/h while conventional devices can consume up to 12L/h gas suction rate.

  4. Data logging software is one of the major advantages you can have in this MIRI® GA. Aside from the data logger itself, it comes with an adjustable alarm threshold which you can’t find in any conventional devices.

  5. Last but not the least, its ability to monitor up to 6 incubation chambers at the same time. In conventional devices, it can only validate one unit at a time.

Ordering Information

MIRI® GA Gas and Temperature Validation Unit
Item Code Model Code Description
1320045 MRI-GA MIRI® GA CO2 / O2 / Temp validation Unit, 115/230V, 50/60Hz
*Includes data logger software, 1pc PT1000 cable, 1pc Gas connection tube, 1pc Gas feedback tube
Accessories
Item Code Model Code Description
1320063 MRA-1101 1pc PT1000 cable
1320064 MRA-1102 Set of 6pcs PT1000 cables
1320065 MRA-1103 1pc Gas connection tube
1320066 MRA-1104 Set of 6pcs Gas connection tubes

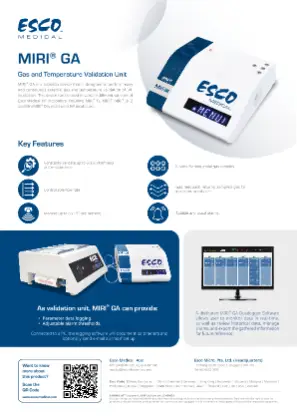

Literature & Resources
