Mini MIRI® Humidity Incubator

The Mini MIRI® Humidity Incubator is a humidified mini benchtop incubator built on the robust and reliable MIRI® design. The compact design and direct heat regulation help prevent vapor condensation and further translate to faster temperature and gas recovery.

Embryo Culture

For Embryo Culture

Features

Independent chambers

Compatible with Large Variety

Fast Temperature and Gas Recovery

Continuous pH monitoring (Optional)

Built in Tri-Gas Mixer

Continuous External Validation on Gas and Temperature

Get a Quote Download Catalogue Watch Video
Product Details Parts of the Mini MIRI® Humidity Incubator Data Logger Software General Specifications Ordering Information Literature & Resources

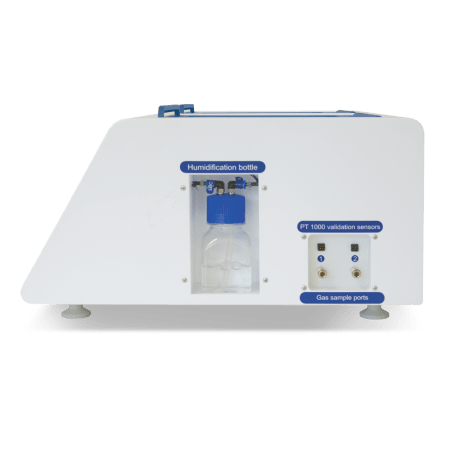

Parts of the Mini MIRI® Humidity Incubator

Parts of the Mini MIRI® Humidity Incubator

Recirculating Gas for Minimal
Gas Consumption

The Mini MIRI® Humidity Incubator is a humidified mini bench top incubator that uses either premixed gases or pure gas (N2 and CO2) inserts that pass through a tri-gas mixing chamber to ensure precise gas concentrations before entering the incubator chambers. Afterward, this gas recirculates and goes again through the gas mixing chamber which helps in minimizing gas consumption.

Recirculating Gas for Minimal Gas Consumption

Data Logger Software

Data Logger Software

The Mini MIRI® Humidity Incubator comes with a data logger software that monitors the temperature, gas concentration, gas input pressure, gas flow rates, and alarms. All real-time parameters can be viewed conveniently in graphs when the Mini MIRI® is connected to a PC and the data logger software can also monitor multiple incubators at the same time. Weekly reports can be exported for the users' convenience.

data logger software
data logger software alarm
data logger software temperature

General Specifications

Specifications Mini MIRI® Humidity
Overall Dimensions (W x D x H) 525 x 420 x 230 mm
Weight 22 kg
Power Supply 115V 60Hz or 230V 50Hz
Power Consumption 160 W
Temperature Control Range 25- 40 °C
*CO2 Gas Consumption <4 Liters per hour
**N2 Gas Consumption <12 Liters per hour
Gas Pressure 0.4 to 0.6 bar
Shipping Weight 30 kg
Shipping Dimensions 700 x 400 x 460 mm

* Under normal condition (CO2 set point reached at 6.0%, all lids closed)
** Under normal condition (O2 set point reached at 5.0%, all lids closed)

Ordering Information

Mini MIRI® Humidity Incubator
Item Code Model Code Description
Unit
2070155 MRI-MINI-H-8 Mini MIRI® Humidity, 230V, 50/60Hz
2070156 MRI-MINI-H-9 Mini MIRI® Humidity, 115V, 50/60Hz
2070157 MRI-MINI-H-SS-8 Mini MIRI® Humidity with SAFE Sens for pH monitoring, 230V, 50/60 Hz
2070158 MRI-MINI-H-SS-9 Mini MIRI® Humidity with SAFE Sens for pH monitoring, 115V, 50/60 Hz
Accessories
1081277 MRA-SS-SV2 SAFE Sens SV2 Sensor, Pack of 10 pieces (shelf-life 12 months)
1081278 MRA-SS-QC2 SAFE Sens QC2 Alignment Tool
1320191 MRA-SS-TS SAFE Sens TrakStation, a tablet with SAFE Sens Software, for pH monitoring.
1320003 MRA-FD Insert for Falcon® Dishes
1320004 MRA-ND Insert for Nunc™ Dishes
1320070 MRA-VD Insert for Vitrolife Dishes
1320099 MRA-NID Insert for Nipro™ Dishes
1320100 MRA-LD Insert for LifeGlobal® GPS Dishes
1320101 MRA-PD Insert Without Footprint for Plain Dishes
1320118 MRA-OD Insert for SparMED Oosafe®
1320219 MRA-FD-SS Insert for Falcon® Dishes, with hole for SAFE Sens
1320220 MRA-ND-SS Insert for Nunc™ Dishes, with hole for SAFE Sens
1320221 MRA-VD-SS Insert for Vitrolife Dishes, with hole for SAFE Sens
1320222 MRA-NID-SS Insert for Nipro™ Dishes, with hole for SAFE Sens
1320223 MRA-LD-SS Insert for LifeGlobal® GPS Dishes, with hole for SAFE Sens
1320224 MRA-PD-SS Insert Without Footprint for Plain Dishes, with hole for SAFE Sens
1320225 MRA-OD-SS Insert for SparMED Oosafe®, with hole for SAFE Sens

Literature & Resources
