Anti-Vibration Table
(MIRI® AVT)

When employing highly sensitive laboratory balances, microscopes, and other high-precision equipment, an Anti-Vibration Table (MIRI® AVT) is a specialized work surface that can be utilized to considerably reduce vibrations and disruptions. AVTs are often employed in laboratory settings while performing precise weighing tests, testing, and scientific analysis. They are made of shock-resistant materials including granite, steel, and rubber.

Animal IVF
Sample Handling

For Animal IVF & Sample Handling

Features

Specially designed for micro-manipulation procedures

For High Magnification Microscopy

Anti-Vibration Mechanism

Sturdy table frame

Stainless steel table-top

The anti-vibration platform is in the middle of the table-top

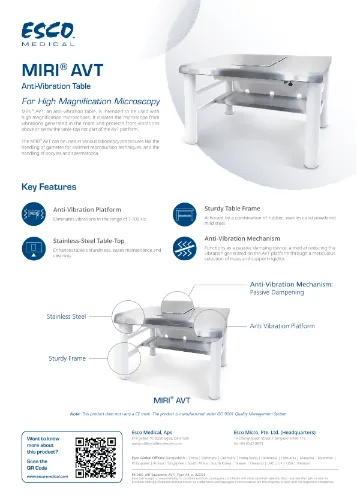

Get a Quote Download Catalogue Watch Video
Product Details Esco Medical MIRI® AVT Anti-Vibration Table Product Features General Specifications Ordering Information Literature & Resources

Esco Medical MIRI® AVT Anti-Vibration Table

The field stability during high-magnification microscopy is impacted by ambient low frequencies. In order to protect the microscope from vibrations during In Vitro Fertilization (IVF) and Intracytoplasmic Sperm Injection (ICSI) procedures, the Anti-Vibration Table (MIRI® AVT) is equipped with a passive dampening mechanism. The MIRI® AVT is designed to be user-friendly and almost maintenance-free. The table has a strong, high-quality stainless steel structure that is simple to clean and maintain.

Esco Medical is a manufacturer of MIRI® AVTs. The Anti-Vibration Table (MIRI® AVT) is commonly used for Animal IVF & Sample Handling. In these procedures, the Anti-Vibration Table (MIRI® AVT) is utilized to eliminate undesirable vibrations that limit the high-magnification microscope. When performing micromanipulation processes, the AVT isolates microscopes from vibration via a passive dampening system.

Parts of MIRI AVT Anti-Vibration Table

Specially designed for micro-manipulation procedures

The Esco Medical Anti-Vibration Table (MIRI® AVT) is specially designed for In Vitro Fertilization (IVF) and micro-manipulation procedures such as Intracytoplasmic Sperm Injection (ICSI).
Specially designed for micro-manipulation procedures
Specially designed for micro-manipulation procedures

For High Magnification Microscopy

High magnification microscopes are intended for use with the Esco Medical MIRI® AVT. It separates the microscope from any vibrations produced above or below any portion of the tabletop that is not a component of the AVT platform as well as from vibrations produced in the room where the table is positioned.

Anti-Vibration Mechanism

The Esco Medical MIRI® AVT employs passive dampening, in which vibrations are effectively minimized through the careful selection of mass and support stiffness.

The anti-vibration mechanism serves as a passive dampening device and only partially minimizes the vibration that is generated on the AVT platform itself. The vibrations are efficiently reduced through a carefully researched choice of mass and support rigidity that ensures passive dampening. Floors vibrate at low frequencies throughout all structures, which could have an impact on how well high-magnification microscopes work. Installing a mechanism that isolates the microscope region will significantly lessen the effects of vibration. Depending on the intensity and frequency of the floor vibrations, the degree of improvement varies between instruments and places.

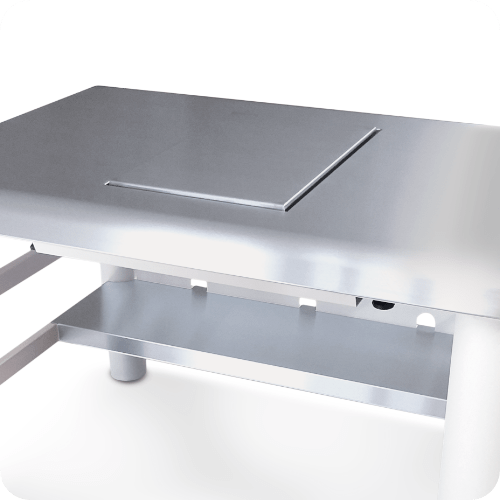

Sturdy table frame

Sturdy table frame

High-quality stainless steel was used to construct the strong table frame, making maintenance and cleaning a breeze. A support stand is also made of stainless steel that provides durability.

Stainless steel table-top

Stainless steel table-top with glass on both sides.
Stainless steel table-top

The anti-vibration platform is in the middle of the table-top

The anti-vibration platform, which is floating atop the MIRI® AVT mechanism and housing the anti-vibration mechanism, is in the center of the tabletop. A microscope is mounted on the vibration-reducing float.

General Specifications

Overall dimensions (W x D x H) 1200 × 800 × 785 mm
Material Powder painted mild steel/Stainless steel
Float Size 540 × 340
Recommended load weight 26-32 kg
Damping coefficient (6 Hz) ~ 0.1
Amplitude (6 Hz) < 1 µm

The spectrum of the vertical vibration velocity with the additional mass of 47 kg. The resonance frequency is 5-5.29 Hz.

Applications

When employing highly sensitive laboratory balances, microscopes, and other high-precision equipment, an anti-vibration table (MIRI® AVT) is a specialized work surface that can be utilized to considerably reduce vibrations and disruptions. Anti-vibration tables are often employed in laboratory settings while performing precise weighing tests, testing, and scientific analysis. They are made of shock-resistant materials including granite, steel, and rubber. Simple yet effective, anti-vibration tables (MIRI® AVT) function by absorbing any vibrations in a lab using a shock-absorbing substance. The shock-absorbent material stops motion from traveling from your weighing surface to the tabletop or ground upon which the table is supported.

Anti-Vibration Tables can be utilized in medical research, pharmaceutical production laboratories, university science labs, and food testing facilities. The applications of Anti-Vibration Tables in various industries gives a significant importance to its manufacturing.

Ordering Information

MIRI® AVT
Item Code Model Code Description
1320484 MIRI® AVT Anti-Vibration Table MIRI® AVT
