Multi-Zone ART Workstation

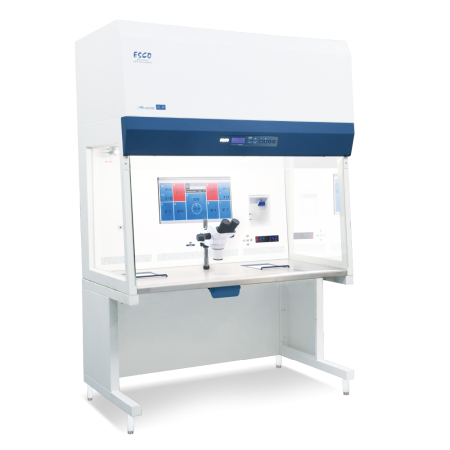

Multi-Zone ART Workstation Front Left
  2. Products
  3. Multi-Zone ART Workstation

Multi-Zone ART Workstation

Vertical laminar flow workstations with multiple heating zones that enable precise temperature control across the work surface, with the provision to have a built-in microscope and integrated MIRI® chambers. Available in different sizes and configurations.

Animal IVF
Sample Handling

For Animal IVF & Sample Handling

Features

Multi-Zone heating system

Choice of 4 temperature modes

Microscope integration provision

Humidification system

Energy Efficiency Chart

Touchscreen monitor

Isocide Powder Coat

Stainless Steel Tabletop

Superior Air Cleanliness

Less Noise, Less Vibration

Cable Pass-Through Channels

Accessories

MIRI® Chambers

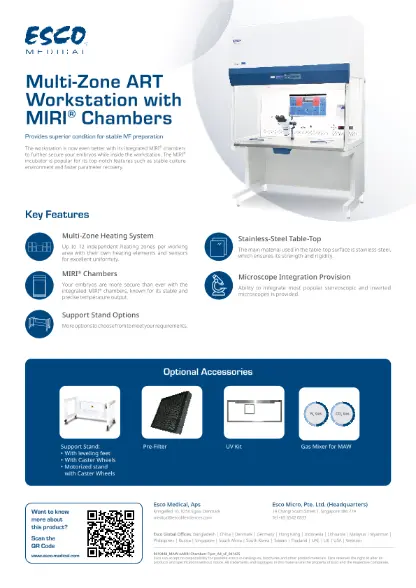

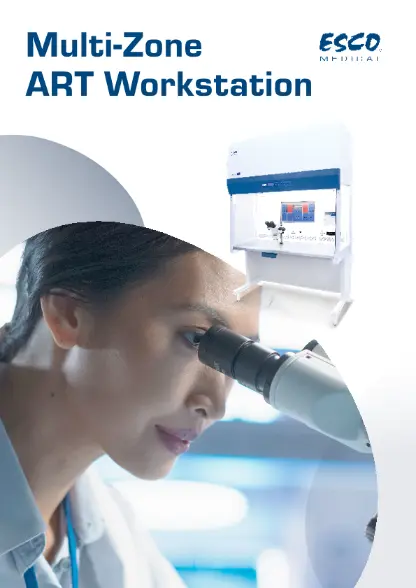

Get a Quote Download Catalogue Watch Video
Product Details Product Features Order Information Literature & Resources
Vertical and Horizontal Laminar Flow Hoods

What are Vertical and Horizontal Laminar Flow Hoods?

Laminar flow hoods or clean benches offer filtered airflow across the work area, protecting the sample from contamination. Laminar Flow hoods are ideal for a range of applications that demand clean air and a sterile environment, such as numerous medical and research laboratories, sterile equipment assembly, and electronic device assembly.

The majority of laminar flow hoods come with either horizontal or vertical airflow. Clean filtered air travels downward from the filter surface on top to the work surface in vertical flow hoods. Clean air travels from a filter behind the work surface toward the operator in horizontal laminar flow cabinets. The kind of procedure, operator safety, and clearance requirements all influence airflow direction.

Applications

Personnel protection is not provided by laminar flow hoods or clean benches, as it is by biosafety cabinets. In the presence of harmful substances, they are ineffective. A biological safety cabinet should be utilized if your application concerns biohazards.

Multi-zone Assisted Reproductive Treatment Workstations are primarily used for Animal In Vitro Fertilization and Sample Handling and are generally suited for non-hazardous applications requiring a clean work environment. Positive-pressure, ISO 5 air is provided throughout the chamber and sash opening, keeping airborne particulates away from sensitive applications.

Multi-Zone heating system

Excellent uniformity is achieved thanks to ten distinct zones with their own heating elements and sensors. The heating system will prioritize power distribution automatically to provide accurate temperature regulation and quick recovery. The temperature regulation of MIRI® chambers is always on in models with MIRI® chambers, independent of mode.

  • Multiple independent heating zones, each with its own heating elements and sensors, with no crossover heating across zones.
  • The heated glass stage has its own independent heating zone further to enhance the temperature control and recovery in this zone.
Multi-Zone heating system
Choice of 4 temperature modes

Choice of 4 temperature modes

You can turn on all zones, turn off the right zones, turn off the right and middle zones or all zones are turned off.

Microscope integration provision

  • Provision to integrate the most popular stereoscopic and inverted microscopes.
  • The work chamber's integrated stereoscope allows users to keep culture dishes at a constant temperature while observing and manipulating them. Accidents will be less likely with fewer movements.
Microscope integration provision
Humidification system

Humidification system

The design does not actively control the humidification level in the system to reach certain humidity levels (despite the gas humidification is a continuous process). For models without MIRI® chambers, the gas outlet port is located on the table surface and using a plastic cover, a “semi-closed” environment can be created.

  • Built-in passive humidification system with digital control of pre-mixed gas flow.
  • A gas outlet port located on the table surface; used with the provided plastic cover it helps keep samples under controlled conditions.

Energy Efficiency Chart

ECM blowers are used in Esco Assisted Reproductive Technology Workstations, enabling minimal cabinet power consumption without sacrificing cabinet performance. It also has a standby mode that helps to save energy while the cabinet is not in use.

Touchscreen monitor

Fully functional Windows PC with a touch screen provides real-time information on all work area parameters e.g. zone temperature performance, gas pressure, and flow rate. Here are the touchscreen monitor’s full and detailed specs:

  • Displays the temperature of the heated surface, as well as the gas flow and pressure.
  • Reports of these parameters can be generated.
  • Observe and record culture behavior in real-time via microscope camera function.
  • Enable teleconference calls with colleagues in other sites for real-time collaborative work.
  • Note: Webcam is not supplied.
Touchscreen monitor
Isocide logo

Isocide Powder Coat

It's a silver-ion impregnated powder coat that improves safety by inhibiting microbiological development.

Stainless Steel Tabletop

  • Stainless steel is the primary material utilized in the tabletop surface. While aluminum is employed to cover the tabletop's bottom.

Superior Air Cleanliness

Esco cabinets deliver ISO Class 3 air cleanliness within the work zone, which is much cleaner than the competition's Class 4 designation.
Superior Air Cleanliness
Less Noise, Less Vibration

Less Noise, Less Vibration

The Esco Multi-Zone ART Workstation offers cutting-edge design and features that result in extremely low noise and vibration levels, making it ideal for sensitive microscopic work. It has a smaller, high-efficiency ECM blower that creates less noise and vibrations, as well as a passive damper that runs the length of the link, dampening the cabinet frame with table plate vibrations.

Cable Pass-Through Channels

The Esco Multi-Zone ART workstation has a convenient way for electrical cables of other equipment and/or accessories (i.e., a camera) to pass through its back wall. This provides a cleaner and more organized interior that should help improve your IVF workflow.
Cable Pass-Through Channels

Accessories

  • Option to have integrated MIRI® chambers for embryo safety and to improve workflow.
  • Optional UV lamp for work zone decontamination used with an optional polycarbonate front cover for UV shielding.
MIRI Chambers

MIRI® Chambers

  • The Esco Multi-Zone ART Workstation has been improved with the addition of integrated MIRI® chambers, which help to keep your embryos safe while within the workstation.
  • The MIRI® incubator is well-known for its superior qualities, such as a consistent culture environment and quick parameter recovery.
  • The integrated MIRI® chambers, which are known for their consistent and exact temperature output, keep your specimens safer than before.

Conclusion

Infertility is a serious social, psychological, and financial condition that affects both individuals and couples. It is a worldwide issue that transcends race and creed. It is anticipated that one out of every six couples may experience infertility at some point during their lives. Esco Medical is one of the Esco Lifesciences Group's divisions. We provide fertility clinics and laboratories with cutting-edge technology solutions. Long-term embryo incubators, ART workstations, anti-vibration tables, and time-lapse incubators are among the products we hope to develop.

The Silent Embryo Hypothesis serves as a guiding principle in the development of our products. According to this hypothesis, the less disturbed an embryo is, the better its developmental potential. The majority of our items are created in Denmark and manufactured in the European Union. Our main goal is to improve patient happiness and pregnancy success rates.

Recommended List of Microscopes and
Base Stands

INVERTED MICROSCOPE FOR MP SERIES WORKSTATION ONLY

Olympus IX83P1ZF: One-Deck

Olympus IX73P1F: One-Deck (Customization on workstation needed)

Olympus IX73P2F: Two-Decks

Olympus IX53P1F: One-Deck (Customization on workstation needed)

Nikon Ti-U

Nikon Ti-S

Nikon Ti-E

Zeiss Axio Vert.A1

Zeiss Axio Vert.A1 FL

Zeiss Axio Vert.A1 FL-LED

Order Information

Esco Multi-Zone ART Workstations
Item Code Model Code Description
Esco Multi-Zone ART Workstation Basic Configuration and Multi-Purpose
2070177 MAW-3D8  Esco Multi-Zone ART Workstation, 3ft 3ft (0.91m), 230V 50/60Hz
2070178 MAW-3D9 Esco Multi-Zone ART Workstation, 3ft (0.91m), 115V 50/60 Hz
2070017 MAW-4D8 Esco Multi-Zone ART Workstation, 4ft (1.2m), 230V 50/60Hz
2070025 MAW-4D9 Esco Multi-Zone ART Workstation, 4ft (1.2m), 115V 50/60Hz
2070018 MAW-6D8-MONO Esco Multi-Zone ART Workstation, 6ft (1.8m), 230V 50/60Hz
2070026 MAW-6D9-MONO Esco Multi-Zone ART Workstation, 6ft (1.8m), 115V 50/60Hz
2070050 MAW-6D8-DUAL Esco Multi-Zone ART Workstation, Double Heated Zone, 6ft (1.8m), 230V 50/60Hz
2070039 MAW-6D9-DUAL Esco Multi-Zone ART Workstation, Double Heated Zone, 6ft (1.8m), 115V 50/60Hz
2070036 MAW-6D8-MP Esco Multi-Zone ART Workstation, Multi-Purpose, 6ft (1.8m), 230V 50/60Hz
2070038 MAW-6D9-MP Esco Multi-Zone ART Workstation, Multi-Purpose, 6ft (1.8m), 115V 50/60Hz
Esco ART Workstation with MIRI® Chambers
2070068 MAW-4D8-MC Esco Multi-Zone ART Workstation, MIRI® Chambers, 4ft (1.2m), 230V 50/60Hz
2070070 MAW-4D9-MC Esco Multi-Zone ART Workstation, MIRI® Chambers, 4ft (1.2m), 115V 50/60Hz
2070069 MAW-6D8-MONO-MC Esco Multi-Zone ART Workstation, MIRI® Chambers, 6ft (1.8m), 230V 50/60Hz
2070071 MAW-6D9-MONO-MC Esco Multi-Zone ART Workstation, MIRI® Chambers, 6ft (1.8m), 115V 50/60Hz
2070075 MAW-6D8-DUAL-MC Esco Multi-Zone ART Workstation, Double Heated Zone, MIRI® Chambers, 6ft (1.8m), 230V 50/60Hz
2070074 MAW-6D9-DUAL-MC Esco Multi-Zone ART Workstation, Double Heated Zone, MIRI® Chambers, 6ft (1.8m), 115V 50/60Hz
2070072 MAW-6D8-MP-MC Esco Multi-Zone ART Workstation, Multi-Purpose, MIRI® Chambers, 6ft (1.8m), 230V 50/60Hz
2070073 MAW-6D9-MP-MC Esco Multi-Zone ART Workstation, Multi-Purpose, MIRI® Chambers, 6ft (1.8m), 115V 50/60Hz
ART Workstation with MIRI® Chambers and Trigas Mixer
2070187 MAW-4D8-MC-G Esco Multi-Zone ART Workstation, MIRI® Chambers, Gas Mixer, 4ft (1.2m), 230V 50/60Hz
2070188 MAW-4D9-MC-G Esco Multi-Zone ART Workstation, MIRI® Chambers, Gas Mixer, 4ft (1.2m), 115V 50/60Hz
2070189 MAW-6D8-MONO-MC-G Esco Multi-Zone ART Workstation, MIRI® Chambers, Gas Mixer, 6ft (1.8m), 230V 50/60Hz
2070190 MAW-6D9-MONO-MC-G Esco Multi-Zone ART Workstation, MIRI® Chambers, Gas Mixer, 6ft (1.8m), 115V 50/60Hz
2070191 MAW-6D8-DUAL-MC-G Esco Multi-Zone ART Workstation, Double Heated Zone,
MIRI® Chambers, Gas Mixer, 6ft (1.8m), 230V 50/60Hz
2070192 MAW-6D9-DUAL-MC-G Esco Multi-Zone ART Workstation, Double Heated Zone,
MIRI® Chambers, Gas Mixer, 6ft (1.8m), 115V 50/60Hz
2070193 MAW-6D8-MP-MC-G Esco Multi-Zone ART Workstation, Multi-Purpose, MIRI® Chambers, Gas Mixer, 6ft (1.8m), 230V 50/60Hz
2070194 MAW-6D9-MP-MC-G Esco Multi-Zone ART Workstation, Multi-Purpose, MIRI® Chambers, Gas Mixer, 6ft (1.8m), 115V 50/60Hz
Recommended List of Microscopes and the Base Stand Types
Inverted Microscope for MP series workstation onlykstation Basic Configuration and Multi-Purpose
Olympus IX83P1ZF: One-Deck
Olympus IX73P1F: One-Deck (Customization on workstation needed)
Olympus IX73P2F: Two-Decks
Olympus IX53P1F: One-Deck (Customization on workstation needed)
Nikon Ti-U
Nikon Ti-S
Nikon Ti-E
Zeiss Axio Vert.A1
Zeiss Axio Vert.A1 FL
Zeiss Axio vert.A1 FL-LED
Stereomicroscope provisions
Microscope types Base stand
Esco Stereomicroscope MS-1 Standard
Nikon SMZ series C-PS / C-PS160 / C-DSS
Olympus SZX series SZX-ST / SZX2-ST/SZ2-ST
Carl Zeiss Stand N / V8 with T-pillar
Leica S8AP0
Accessories
Item Code Model Code Description

5131413

SMC-3A0

Support Stand with Caster Wheels (Height 24”) for 3ft Cabinets

5131414

SMC-3B0

Support Stand with Caster Wheels (Height 30”) for 3ft Cabinets

5131415

SML-3A0

Support Stand with Leveling Feet (Height 24”) for 3ft Cabinets

5131416

SML-3B0

Support Stand with Leveling Feet (Height 30”) for 3ft Cabinets

5131417

SMTC-3A0

Telescopic Stand for MAW 3ft. Caster Wheels

5130179

SMC-4A0

Support Stand with Caster Wheels (Height 24”) for 4ft Cabinet

5130183

SMC-4B0

Support Stand with Caster Wheels (Height 30”) for 4ft Cabinets

5130181

SML-4A0

Support Stand with Leveling Feet (Height 24”) for 4ft Cabinet

5130185

SML-4B0

Support Stand with Leveling Feet (Height 30”) for 4ft Cabinets

5131387

SMTC-4A0

Telescopic Stand for MAW 4ft., Caster Wheels

5131393

SMTC-4A0-CN

Telescoping Support Stand with Caster Wheels (28”-34") for 4ft cabinets (Model with greater work top depth for China only)

5131255

SMC-4M8

4’, Caster wheels, Adjustable Height: 753-1053mm, Motorized Support Stand; 230 VAC 50/60Hz

5131266

SMC-4M9

4’, Caster wheels, Adjustable Height: 753-1053mm, Motorized Support Stand; 115 VAC 50/60Hz

5130180

SMC-6A0

Support Stand with Caster Wheels (Height 24”) for 6ft Cabinets

5130184

SMC-6B0

Support Stand with Caster Wheels (Height 30”) for 6ft Cabinets

5130182

SML-6A0

Support Stand with Leveling Feet (Height 24”) for 6ft Cabinets

5130186

SML-6B0

Support Stand with Leveling Feet (Height 30”) for 6ft Cabinets

5131388

SMTC-6A0

Telescopic Stand for MAW 6ft. Caster Wheels

5131394

SMTC-6A0-CN

Telescoping Support Stand with Caster Wheels (28”-34") for 6ft cabinets (Model with greater work top depth for China only)

5131264

SMC-6M8

6’, Caster wheels, Adjustable Height: 753-1053mm, Motorized Support Stand; 230 VAC 50/60Hz

5131267

SMC-6M9

6’, Caster wheels, Adjustable Height: 753-1053mm, Motorized Support Stand; 115 VAC 50/60Hz

5080185

MAW-CPF

Carbon Pre-Filter 568 mm x 440 mm x 30 mm

Please order 2 units for 4ft MAW and 3 units for 6ft MAW; Factory Installed

5171026

FC-MAW3-8

UV+Front Cover with Magnetic Interlock & Bracket, MAW-3ft, 230V, 50/60Hz

5170798

FC-MAW4-8

UV+Front Cover with Magnetic Interlock & Bracket, MAW-4ft, 230V, 50/60Hz

5170853

FC-MAW4-9

UV+Front Cover with Magnetic Interlock & Bracket, MAW-4ft, 115V, 50/60Hz

5170799

FC-MAW6-8

UV+Front Cover with Magnetic Interlock & Bracket, MAW-6ft, 230V, 50/60Hz

5170854

FC-MAW6-9

UV+Front Cover with Magnetic Interlock & Bracket, MAW-6ft, 115V, 50/60Hz

5090009

PF-MAW-12

Prefilter, PF-MAW-4/6 400 x 500, Polyester media, Universal

5090001

PF-MAW-2

Prefilter, PF-MAW-4/6 565 x 500, Polyester media, China

1320075

MAW-WB1

Tube Warming Block

5170882

MAW-G

CO2/N2 Gas Mixer for MAW
