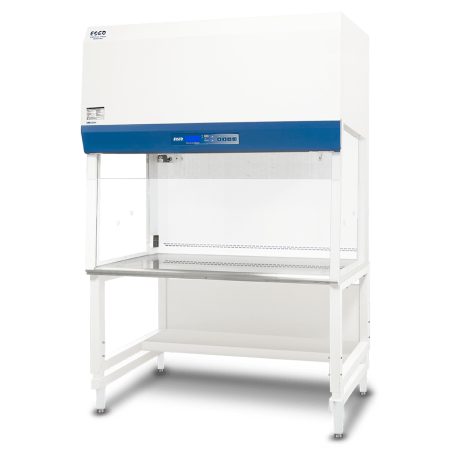

Airstream® Laminar Flow Bench

Airstream® Laminar Flow Bench is a vertical laminar flow workstation providing excellent sample protection. Because of its effective HEPA filters and the latest DC ECM motor the workstation qualifies for the ISO Class 3 standard while being very energy efficient. Also, these laminar flow benches can be used to handle patient sperm samples in andrology.

Sample Handling

For Sample Handling

Features

Product protection

Energy efficient

ISO Class 3 workzone

Quiet operation

Get a Quote Download Catalogue
Product Details Product Features Ordering Information Literature & Resources

Product protection

  • Esco Airstream® Laminar Flow Clean Benches have been tested for cross-contamination and product protection using microbiological test method adopted from EN12469.
  • Every Esco Airstream® Laminar Flow Clean Bench undergoes an ISOCIDE™ Powder Coat treatment that contains silver ions to prevent microbial growth and enhance safety. Additionally, each clean bench is individually tested in the factory to ensure it meets international safety and performance standards.
Product protection
Less energy, more savings

Energy efficient

Energy efficient DC ECM Motor inside the Esco Airstream® Laminar Flow Clean Benches offer energy savings of up to 70% when compared with AC Motor. It has a stable airflow despite voltage fluctuations and filter loading.

ISO Class 3 workzone

Esco Airstream® Laminar Flow Clean Benches have integrated HEPA filters, that offer 10x better filtration efficiency compared to other filters. As a result, the bench is ISO Class 3 compatible, surpassing the industry-standard of ISO Class 5.
ISO Class 3 workzone

Quiet operation

Esco Airstream® Laminar Flow Clean Benches maintain a 52 dBA noise level during normal operation, creating comfortable working conditions.*


*Tested on LVG-4A model in open field conditions.

Ordering Information

Laminar Flow Clean Benches
PRODUCT MATRIX 220-240 VAC, 50/60 Hz 110-130 VAC, 50/60 Hz
Vertical Stainless
Steel Sides
2.25 ft
Internal Height
2120381 LVS-3AG-F8 2120443 LVS-3AG-F9
2120382 LVS-4AG-F8 2120445 LVS-4AG-F9
2120759 LVS-4AG-S8 2120762 LVS-4AG-S9
2120383 LVS-5AG-F8 2120447 LVS-5AG-F9
2120384 LVS-6AG-F8 2120449 LVS-6AG-F9
2120760 LVS-6AG-S8 2120764 LVS-6AG-S9
3 ft
Internal Height
2120565 LVS-4CG-F8 2120605 LVS-4CG-F9
2120569 LVS-6CG-F8 2120609 LVS-6CG-F9
2120686 LVS-8CG-F8 2120687 LVS-8CG-F9
Glass Sides 2.25 ft
Internal Height
2120374 LVG-3AG-F8 2120435 LVG-3AG-F9
2120369 LVG-4AG-F8 2120437 LVG-4AG-F9
2120701 LVG-4AG-S8 2120761 LVG-4AG-S9
2120375 LVG-5AG-F8 2120439 LVG-5AG-F9
2120380 LVG-6AG-F8 2120441 LVG-6AG-F9
2120703 LVG-6AG-S8 2120763 LVG-6AG-S9
3 ft Internal
Height
2120555 LVG-4CG-F8 2120595 LVG-4CG-F9
2120559 LVG-6CG-F8 2120599 LVG-6CG-F9
Horizontal Stainless
Steel Sides
2 ft
Internal Height
2120377 LHS-3AG-F8 2120425 LHS-3AG-F9
2120378 LHS-4AG-F8 2120427 LHS-4AG-F9
2120379 LHS-5AG-F8 2120429 LHS-5AG-F9
2120380 LHS-6AG-F8 2120431 LHS-6AG-F9
2.5 ft
Internal Height
2120463 LHS-3BG-F8 2120503 LHS-3BG-F9
2120465 LHS-4BG-F8 2120505 LHS-4BG-F9
2120467 LHS-5BG-F8 2120507 LHS-5BG-F9
2120469 LHS-6BG-F8 2120509 LHS-6BG-F9
3 ft
Internal Height
2120545 LHS-4CG-F8 2120585 LHS-4CG-F9
2120549 LHS-6CG-F8 2120589 LHS-6CG-F9
2120704 LHS-8CG-F8 2120719 LHS-8CG-F9
Glass Sides 2 ft
Internal Height
2120387 LHG-3AG-F8 2120417 LHG-3AG-F9
2120368 LHG-4AG-F8 2120419 LHG-4AG-F9
2120372 LHG-5AG-F8 2120421 LHG-5AG-F9
2120373 LHG-6AG-F8 2120423 LHG-6AG-F9
2.5 ft
Internal Height
2120453 LHG-3BG-F8 2120493 LHG-3BG-F9
2120455 LHG-4BG-F8 2120495 LHG-4BG-F9
2120457 LHG-5BG-F8 2120497 LHG-5BG-F9
2120459 LHG-6BG-F8 2120499 LHG-6BG-F9
3 ft
Internal Height
2120533 LHG-3CG-F8 2120573 LHG-3CG-F9
2120535 LHG-4CG-F8 2120575 LHG-4CG-F9
2120539 LHG-6CG-F8 2120579 LHG-6CG-F9
Accessories
Item Code Model Code Description
5131413 SMC-3A0 Support Stand with Caster Wheels (Height 28”) for 3ft Cabinets
5131414 SMC-3B0 Support Stand with Caster Wheels (Height 34”) for 3ft Cabinets
5131415 SML-3A0 Support Stand with Leveling Feet (Height 28”) for 3ft Cabinets
5131416 SML-3B0 Support Stand with Leveling Feet (Height 34”) for 3ft Cabinets
5131417 SMTC-3A0 S/Stand Telescopic 3Ft MAW, adjustable height
5171026 FC-MAW3-8 UV+Front Cover with magnetic interlock and bracket, MAW-3FT, 230V 50/60 Hz 5170799
5130179 SMC-4A0 Support Stand with Caster Wheels (Height 28”) for 4ft Cabinets
5130180 SMC-6A0 Support Stand with Caster Wheels (Height 28”) for 6ft Cabinets
5130181 SML-4A0 Support Stand with Leveling Feet (Height 28”) for 4ft Cabinets
5130182 SML-6A0 Support Stand with Leveling Feet (Height 28”) for 6ft Cabinets
5130183 SMC-4B0 Support Stand with Caster Wheels (Height 34”) for 4ft Cabinets
5130184 SMC-6B0 Support Stand with Caster Wheels (Height 34”) for 6ft Cabinets
5130185 SML-4B0 Support Stand with Leveling Feet (Height 34”) for 4ft Cabinets
5130186 SML-6B0 Support Stand with Leveling Feet (Height 34”) for 6ft Cabinets
5131255 SMC-4A8-M Motorized Support Stand for 4ft Cabinet, Caster Wheels,
Adjustable Height: 753mm to 1053mm, 230VAC 50/60Hz
5131266 SMC-4A9-M  Motorized Support Stand for 4ft Cabinet, Caster Wheels,
Adjustable Height: 753mm to 1053mm, 115VAC 50/60Hz
5131264 SMC-6A8-M Motorized Support Stand for 6ft Cabinet, Caster Wheels,
Adjustable Height: 753mm to 1053mm, 230VAC 50/60Hz
5131267 SMC-6A9-M Motorized Support Stand for 6ft Cabinet, Caster Wheels,
Adjustable Height: 753mm to 1053mm, 115VAC 50/60Hz
1320075 MAW-WB1 Tube Warming Block
1320071 MAW-MS1 Stereomicroscope, Total magnification: 6.7X - 45X
5080185 MAW-CPF Carbon Pre-Filter (568 x 440 x 30 mm). Factory-Installed.
Please order 2 units for 4 feet MAW and 3 units for 6 feet MAW
5170798 FC-MAW4-8 UV+Front Cover with magnetic interlock and bracket, MAW-4FT, 230V 50/60 Hz
5170799 FC-MAW6-8 UV+Front Cover with magnetic interlock and bracket, MAW-6FT, 230V 50/60 Hz
5170853 FC-MAW4-9 UV+Front Cover with magnetic interlock and bracket, MAW-4FT, 115V 50/60 Hz
5170854 FC-MAW6-9 UV+Front Cover with magnetic interlock and bracket, MAW-6FT, 115V 50/60 Hz
5170882 MAW-G CO2/N2 Gas Mixer (CO2/ O2 Gas mixing control in MAW). One (1) mixer needed for each MAW
5074858 MAW-PF MAW-4/6 Pre-filter, 565 x 440, with plate for MAW-4/6 Standard
